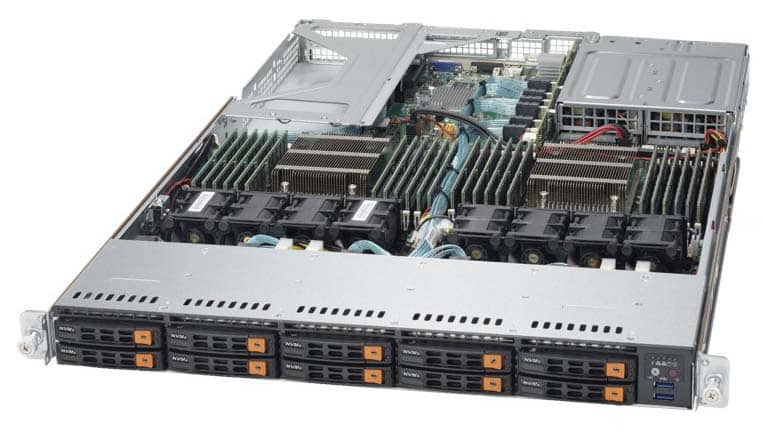

ntop nBox NetFlow H10/25/40
Product code: NTOP-NBOX-NF-H
High-throughput hardware NetFlow probe with monitoring ports scaling from 10 to 40 Gbit/s, processing up to 60 Mpps. Built to order and fully customisable to your requirements.
Why choose nBox NetFlow H10/25/40?
- Scalable port speed — the same appliance runs at 10, 25 or 40 Gbit/s, so it doesn’t need replacing as a link is upgraded.
- Hardware-accelerated NetFlow — up to 60 Mpps of dedicated packet processing, well beyond what a software probe on shared hardware can sustain.
- Layer-7 visibility — nDPI application classification is built into every exported flow, not bolted on afterwards.
- Flexible export — NetFlow v5/v9, IPFIX, Kafka, ClickHouse, ZMQ, CSV and JSON, so it slots into whatever collector or SIEM you already run.
- Optional Enterprise dashboard — add ntopng Enterprise L for multi-user, longer-retention on-box traffic visualisation.
- Built to order — every nBox appliance is configured to your exact throughput, port and capacity requirements at the time of order, and can be tailored to your environment.
- No moving parts to babysit — 1U appliance with up to 3 years’ international on-site hardware warranty, managed entirely through a web GUI.
Technical Specifications
-
Form factor1U 19"
-
Management port1 x Gigabit Copper
-
Monitoring port (base)1 x Gigabit Copper
-
IPMI2.0
-
Height43mm
-
Width437mm
-
Depth429mm
-
Power supply400W, AC redundant
-
Software licensePF_RING ZC nProbe Pro ntopng
-
Available monitoring port options2 x 10 Gbit Intel/FPGA ZC Fiber SFP+, 4 x 10 Gbit Intel/FPGA ZC Fiber SFP+, 2 x 40 Gbit Intel/FPGA ZC Fiber QSFP+
-
Deep packet inspectionnDPI Layer-7 traffic classification, adding application-aware context to every exported flow
-
Export formatsNetFlow v5/v9, IPFIX, plus Kafka, ClickHouse, ZMQ, CSV and JSON output
-
Management interfaceWeb-based nboxui management interface over HTTPS/TLS
-
WarrantyUp to 3 years' international on-site hardware warranty
